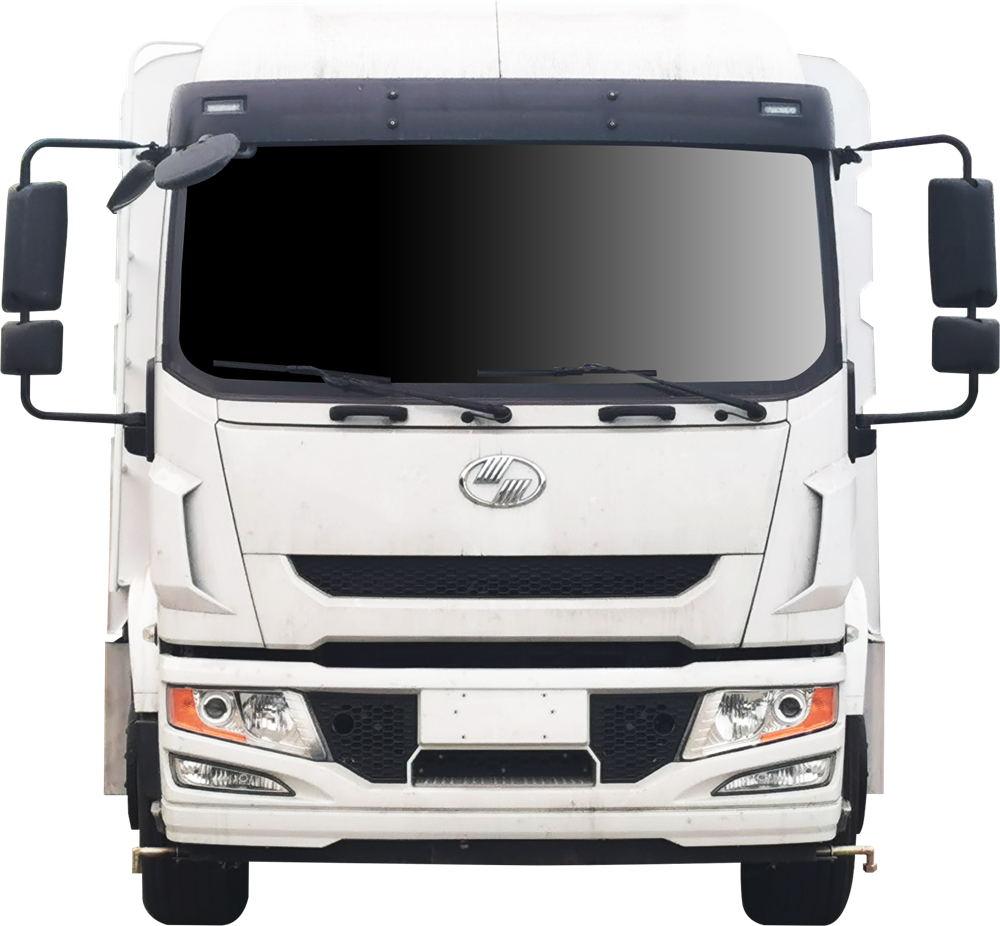

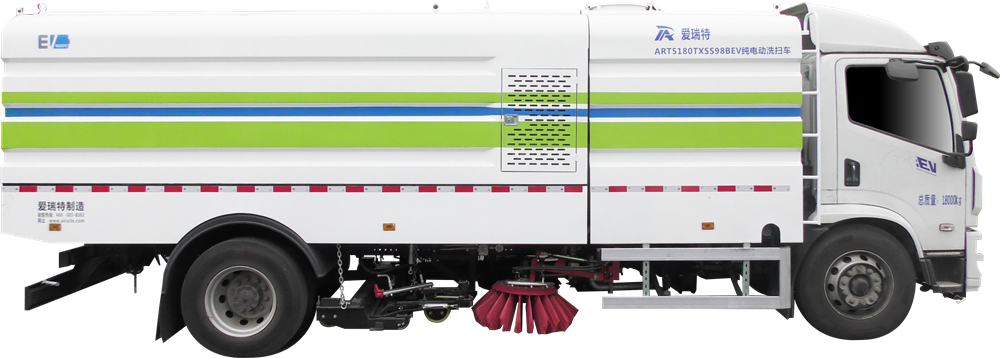

ART5180TXSS98BEV The pure electric washing and sweeping vehicle is mainly used for the general sweeping operation of the main road surface. It integrates the functions of cleaning and high-pressure washing. It can quickly clean the fallen leaves, stones, sand dust, white garbage and dump the garbage.
◆ box: 304 stainless steel material, corrugated box appearance, light structure, not easy to deform and crack
◆ high pressure pump model: pratissoli, Italy
◆ cleaning system: the sweeping plate and spray rod have the functions of automatic avoidance and automatic recovery in case of obstacles. The central sweeping plate (two sweeping plates can be controlled separately) + the central V-shaped spraying frame + the central double suction port structure. The operation modes include: "full washing and sweeping", "left washing and sweeping", "right washing and sweeping", "full sweeping", "left sweeping" and "right sweeping"
◆ hydraulic system: open hydraulic system, electro-hydraulic centralized control, nominal displacement of hydraulic pump: 14ml / R
◆ cleaning system: driven by chassis gearbox and power take-off, the model of water pump is 80qzf-60 / 90

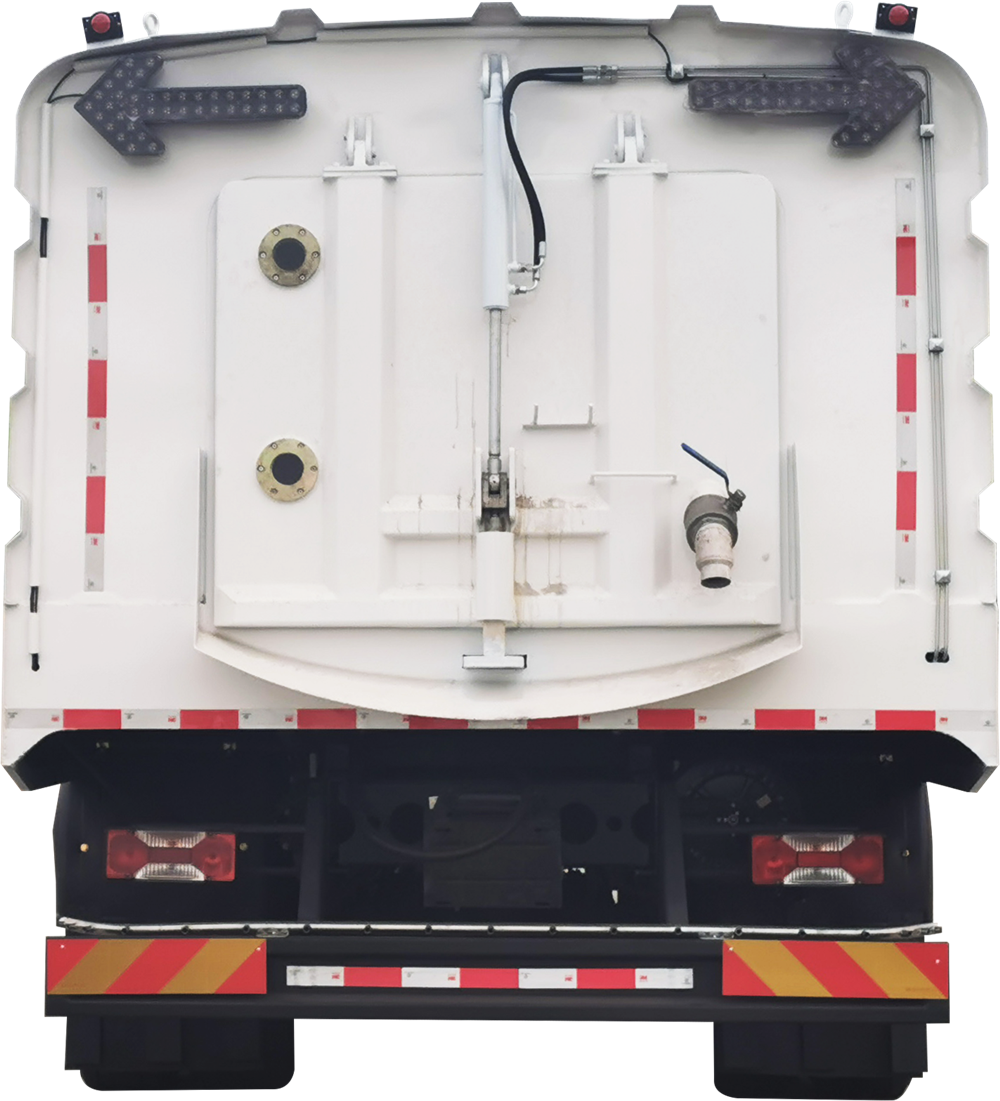

◆ self cleaning of dustbin: the dustbin is equipped with a self-cleaning spray rod, which is threaded in the dustbin, the spray angle can be adjusted, and the nozzle is easy to remove and replace.
Entry name | Company | Parameter |
Chassis model / brand | / | SH1187ZPEVWZ1/Leap forward |
Total mass | kg | 18000 |
Curb weight | kg | 12450 |
Wheelbase | mm | 5200 |
Axle load | kg | 7000/11000 |
Battery brand | / | Ningde times (lithium iron phosphate) |
Battery capacity | kWh | 314.36度（580V/542Ah） |
Range | km | 312（Working condition method） |
Maximum speed | km/h | 90 |
Maximum climbing gradient | % | 30 |
Minimum turning radius | m | 8.5/9.5 |
High pressure pump flow | L/min | 142 |
High pressure pump pressure | Mpa | 10 |
Rated speed of high pressure pump | rpm | 1450 |
Bin volume | m3 | 7 |
Clean water tank volume | m3 | 7 |
Dimensions | mm | 8630*2550*3200 |
